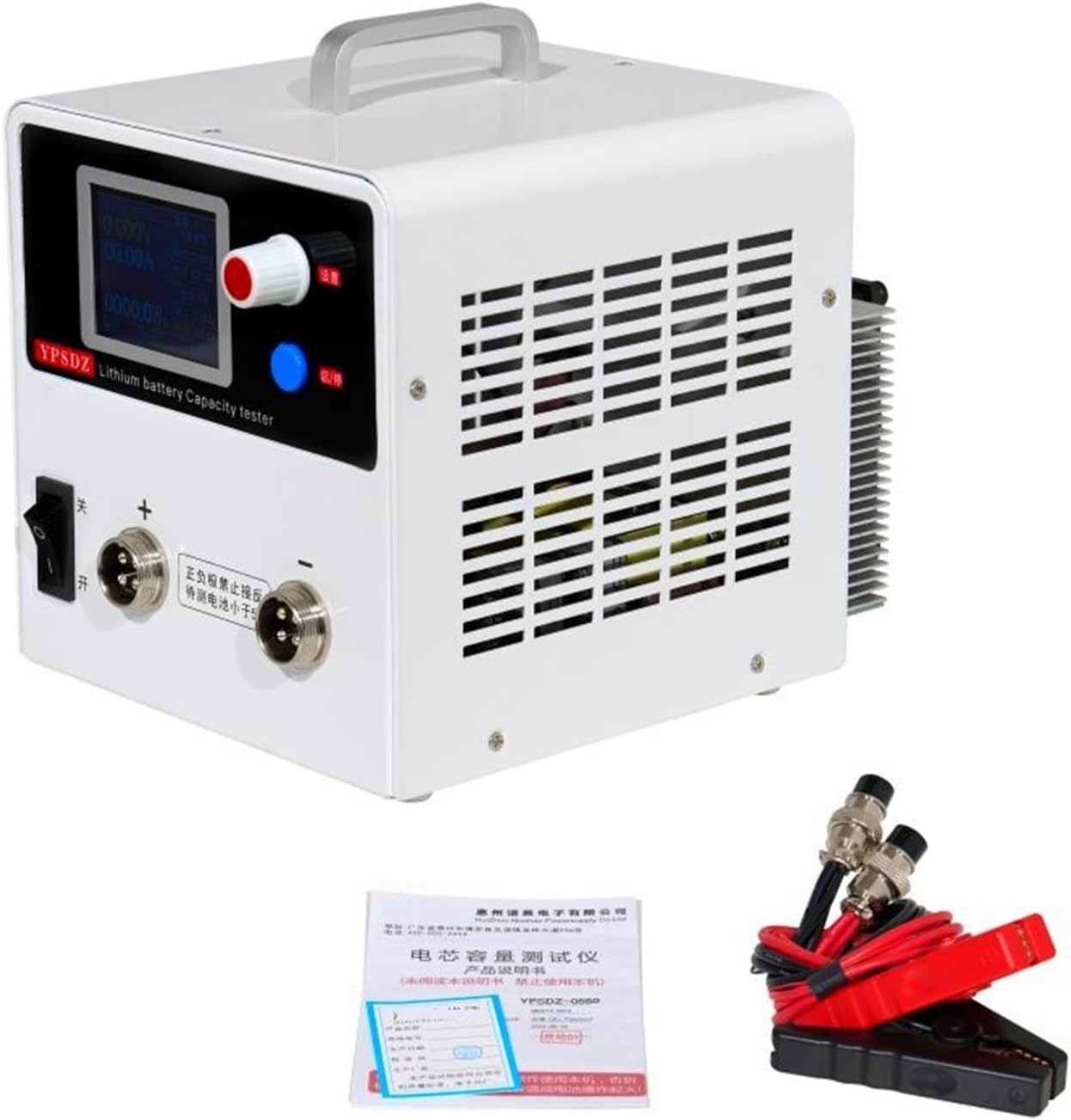

YPSDZ-0550 Lithium Battery Capacity Tester Single Cell Charge and Discharge Detection Instrument Discharge Balancing Instrument - Battery Analyzer

Model YPSDZ-0550 can be switched between Chinese and EnglishCharging voltage 1-5V adjustableCharging current 0.5-50A adjustableDischarge voltage 1-5V adjustableDischarge current 0.5-50A adjustableCharging mode constant current constant voltageDischarge mode constant current discharge (no spike)Working mode charge/discharge/cycle 1-5 timesAlarm protection Battery overvoltage/battery reverse connection/battery disconnection/internal high temperature alarm and protectionCalibration method Factory calibration + third-party professional calibration (traceable to the National Bureau of Metrology)Accuracy Voltage +0.1%, Current +0.3% (allow authorized user calibration)Heat dissipation The temperature-controlled fan is turned on at 40°C (please check regularly and maintain the normal operation of the fanWorking environment 0-40 ℃ ventilation, do not allow heat to accumulate around the machineDimensions and weight Width 150 Height 170 Depth 215mm

• Running time: record the current running time.
• Temperature: The temperature on the radiator, if it is higher than 83C, it will enter the protection state.
• Current and voltage: the real-time voltage of the battery under test. Current Current: The real-time current of the battery under test.
• Current capacity: the current real-time cumulative capacity. Current energy: current real-time accumulated energy.
• Working mode: cycle mode (charge-discharge-charge), single charge mode (only charge), single discharge mode (only discharge).
