RATTMMOTOR 1.5KW Water Cooled Spindle Kit 80mm Spindle Motor 1500W 110V 400HZ+1.5KW VFD 110V Single to 3 Phase Inverter Variable Frequency Drive+80mm Spindle Mount+ER11 Collet+80W Water Pump for CNC
US$103.20
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by vdmeij.nl
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
Product details
| Management number | 222907765 | Release Date | 2026/05/09 | List Price | US$103.20 | Model Number | 222907765 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ✅【Package Include】: ①1 x 1.5KW Water Cooled Spindle Motor ER11 ②1 x 1.5KW VFD 110V③1 x 80mm Spindle Motor Mount ④1 x 80W Water Pump ⑤1 x 5m Pipe ⑥14 x ER11 Collet（1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 3.175mm）

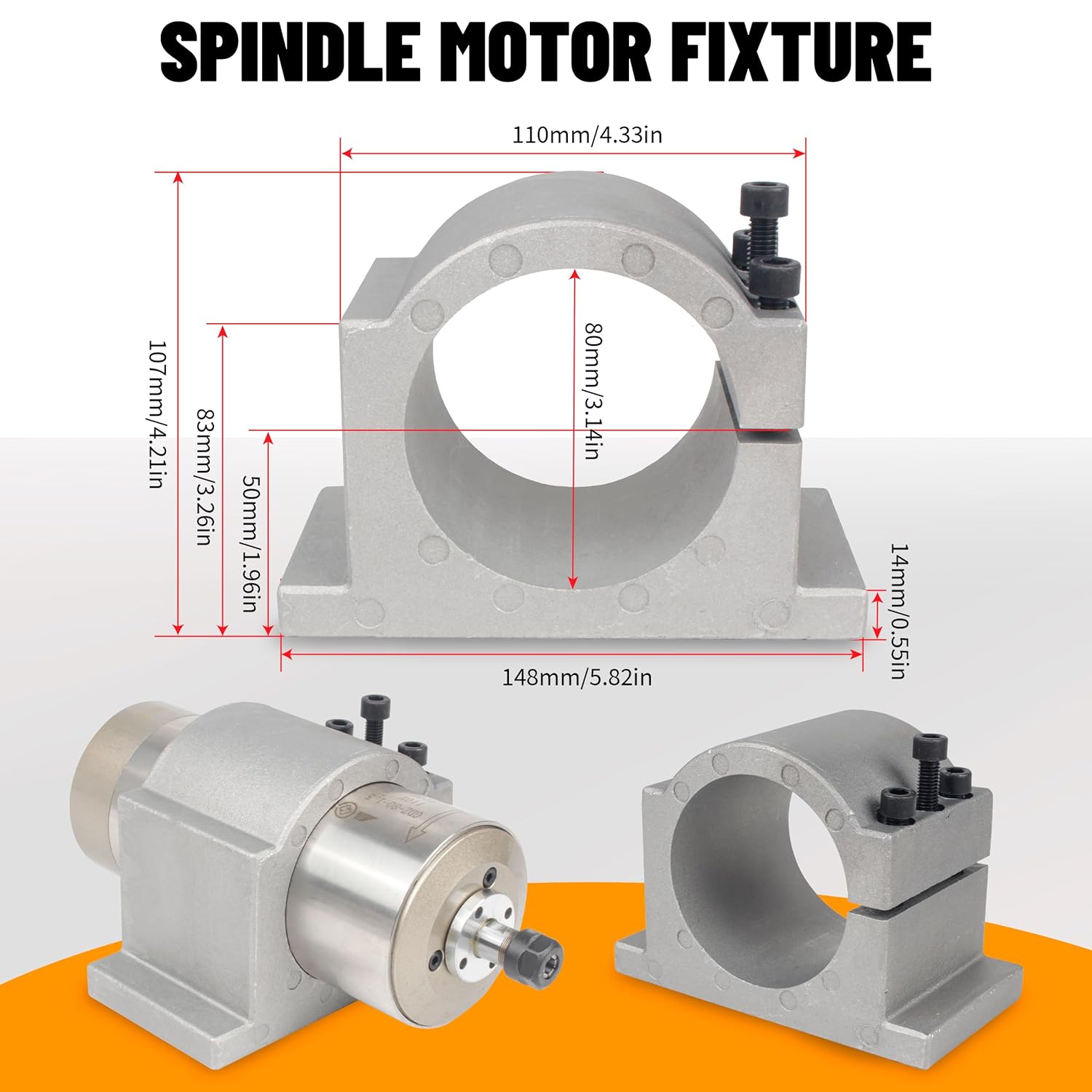

- ✅【1.5KW Spindle Motor】: ①This is a 110V-1.5KW water-cooled 10A Φ 80x188mm spindle motor come with a ER11 nut and collet, and equipped with a 80mm spindle mount. Frequency is 400HZ, 0.003--0.005 accuracy and runout off is Less than 0.01mm. ②Speed of The Spindle Motor : 0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the main shaft cannot only rotate clockwise or counter clockwise.
- ✅【How to Connect Spindle Motor and VFD】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected separately with inverter's port U, V, W. Number 4 is the ground wire, no wiring is required.
- ✅【VFD Inverter Parameters】The 1.5KW variable frequency drive inverter has five-digits display and status indicator lamp display frequency, current, revolution, voltage, counter, temperature, foward or reverse running, fault, ect. Input Voltage: 110V(+/-15%) ,Output Voltage 110V, Input Frequency: 50-60 Hz, Output Frequency: 0-1000 Hz, Input Phase: 1 phase, Output Phase: 3 phase.
- ✅【80W 110V Water Pump】Power: 80W, Flow: 3500L/H, Hmax: 3.5M, Voltage: 110V/50HZ. Also suitable for 0.8KW, 1.5KW, 2.2KW, 3KW and other high speed CNC water cooled spindle motor. Please remind that the submersible pump should be completely immersed in water when it is working to ensure that the submersible pump has a certain degree of cooling.
| ASIN | B09XX6CKKH |
|---|---|
| Speed | 24000 RPM |
| Voltage | 110 Volts |
| Wattage | 1500 watts |
| Brand Name | RATTMMOTOR |
| Horsepower | 1.5 Kilowatts |
| Item Weight | 8.1 Kilograms |
| Part Number | 1.5KWB110V-ER11 |
| Manufacturer | RTM |
| Material Type | Stainless Steel |
