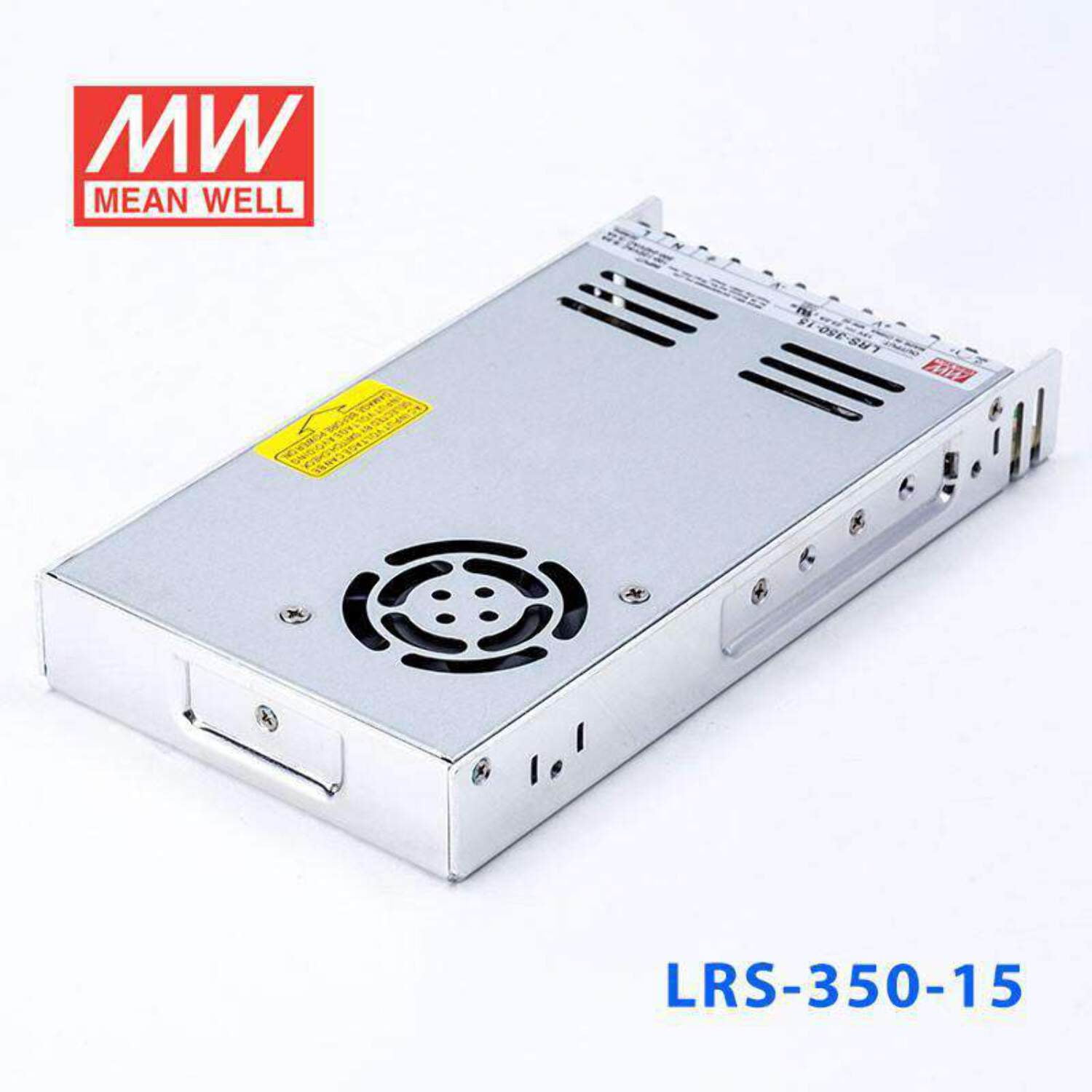

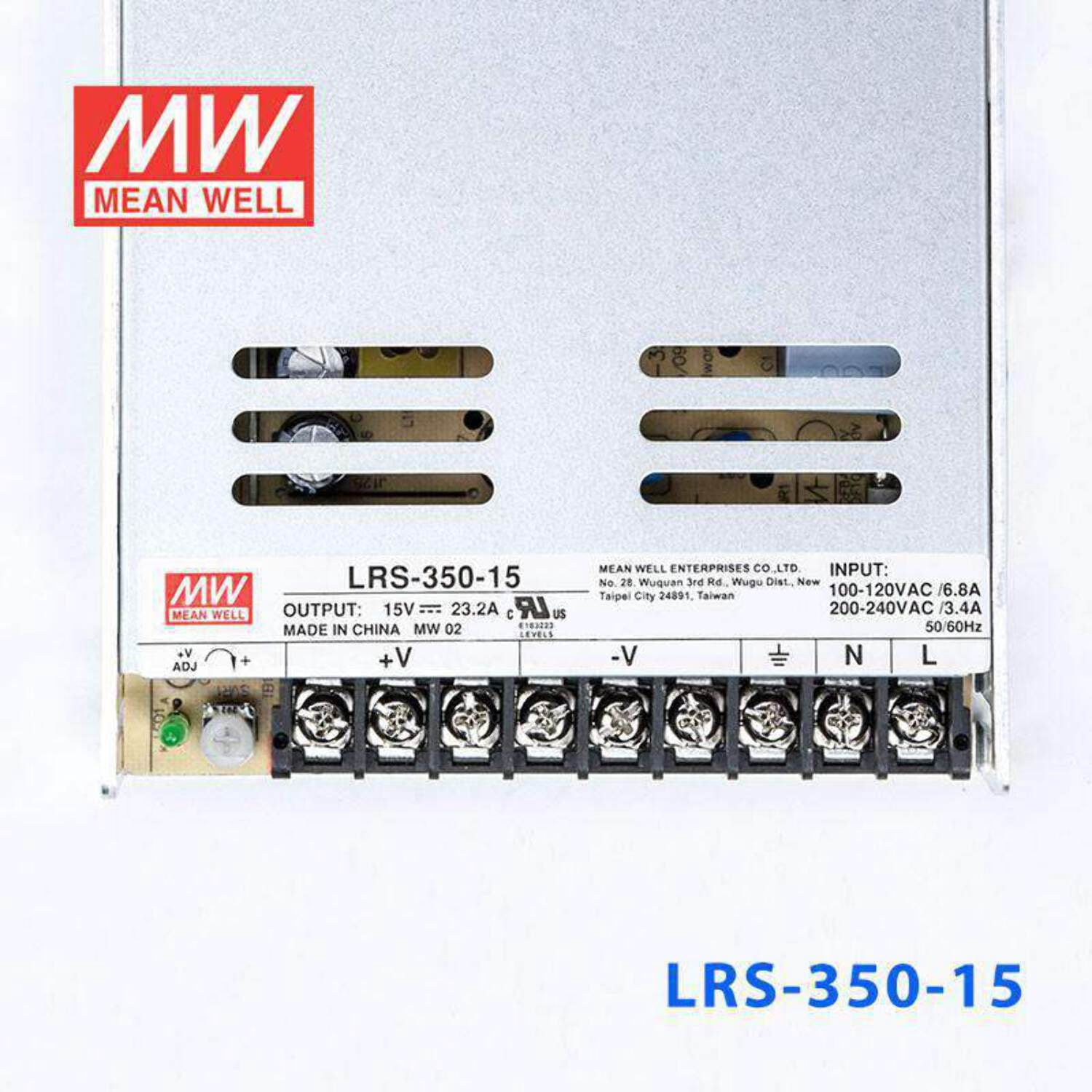

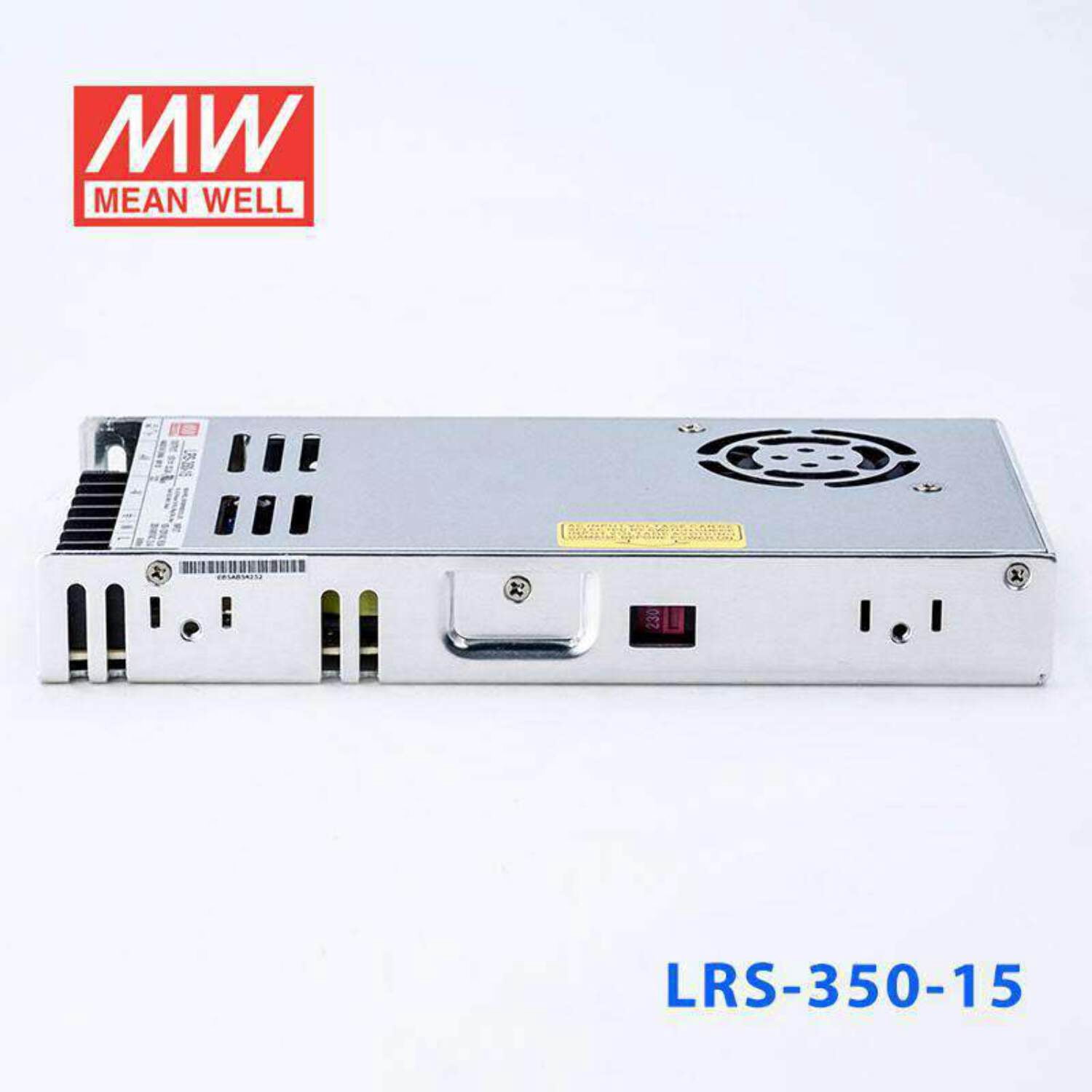

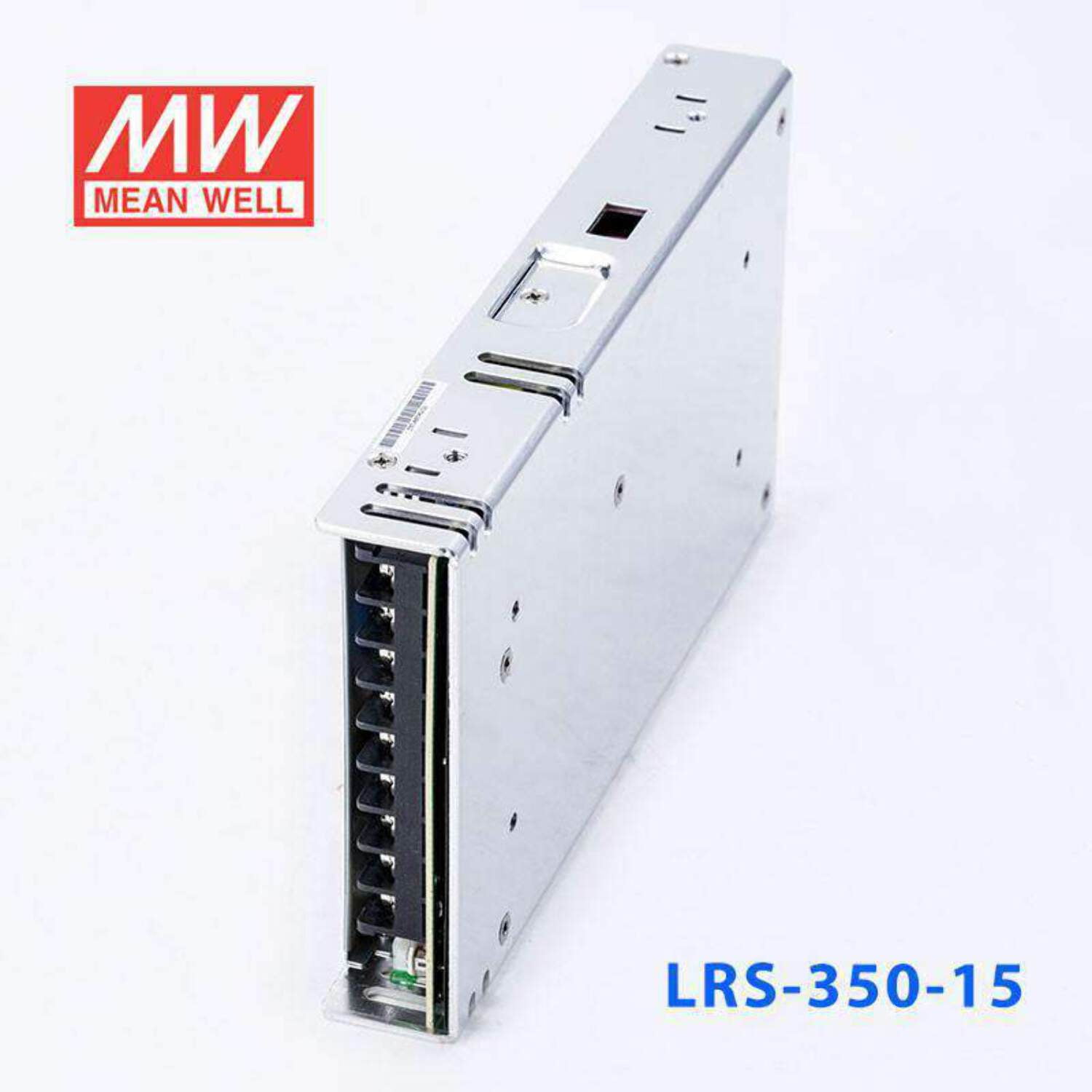

Mean Well LRS-350-15 Power Supply 350W 15V

<em></em> Features:<p>No load power consumption &lt;0.5W for 150W;&nbsp; &lt;0.75W for 200W/350W<br>AC input selectable by switch<br>Withstand 300VAC surge input for 5 seconds<br>Ultra compact and 1U low profile<br>Withstand 5G vibration test<br>High operating temperature up to 70oC<br>Protections:&nbsp; Short circuit / Overload / Over voltage / Over temp.<br>Cooling by free air convection (150W/200W);&nbsp; forced air cooling by built-in DC fan (350W)<br>Compliance to IEC/EN60335-1(PD3) and&nbsp; IEC/EN61558-1,-2-16 for household appliances (150W)<br>Operating altitude up to 5000 meters<br>LED indicator for power on<br>High efficiency, long life and high reliability<br>Low cost<br>3 years warranty</p><p><br></p><em></em> General Specification&nbsp;<table><tbody><tr><td><strong>AC input voltage range</strong></td><td>115 / 230VAC by switch</td></tr><tr><td><strong>AC inrush current (max.)</strong></td><td>Cold start, 60A at 230VAC</td></tr><tr><td><strong>DC adjustment range</strong></td><td>±10% by potentiometer</td></tr><tr><td><strong>Overload protection Range</strong></td><td>110%~140%</td></tr><tr><td><strong>Overload protection Type</strong></td><td>Hiccup mode, auto-recovery</td></tr><tr><td><strong>Over voltage protection Range</strong></td><td>115%~145% rated output voltage</td></tr><tr><td><strong>Over voltage protection Type</strong></td><td>Shut down o/p voltage, re-power on to recover</td></tr><tr><td><strong>Withstand voltage</strong></td><td>I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC</td></tr><tr><td><strong>Working temperature</strong></td><td>-25~+70°C (refer to output derating curve)</td></tr><tr><td><strong>Safety standards</strong></td><td>UL60950-1 approved</td></tr><tr><td><strong>EMC standards</strong></td><td>Design refer to EN55022 class A</td></tr><tr><td><strong>Connection</strong></td><td>9P/9.5mm pitch terminal block</td></tr><tr><td><strong>Dimension (LxWxH)</strong></td><td>215x 115x 30</td></tr></tbody></table>
