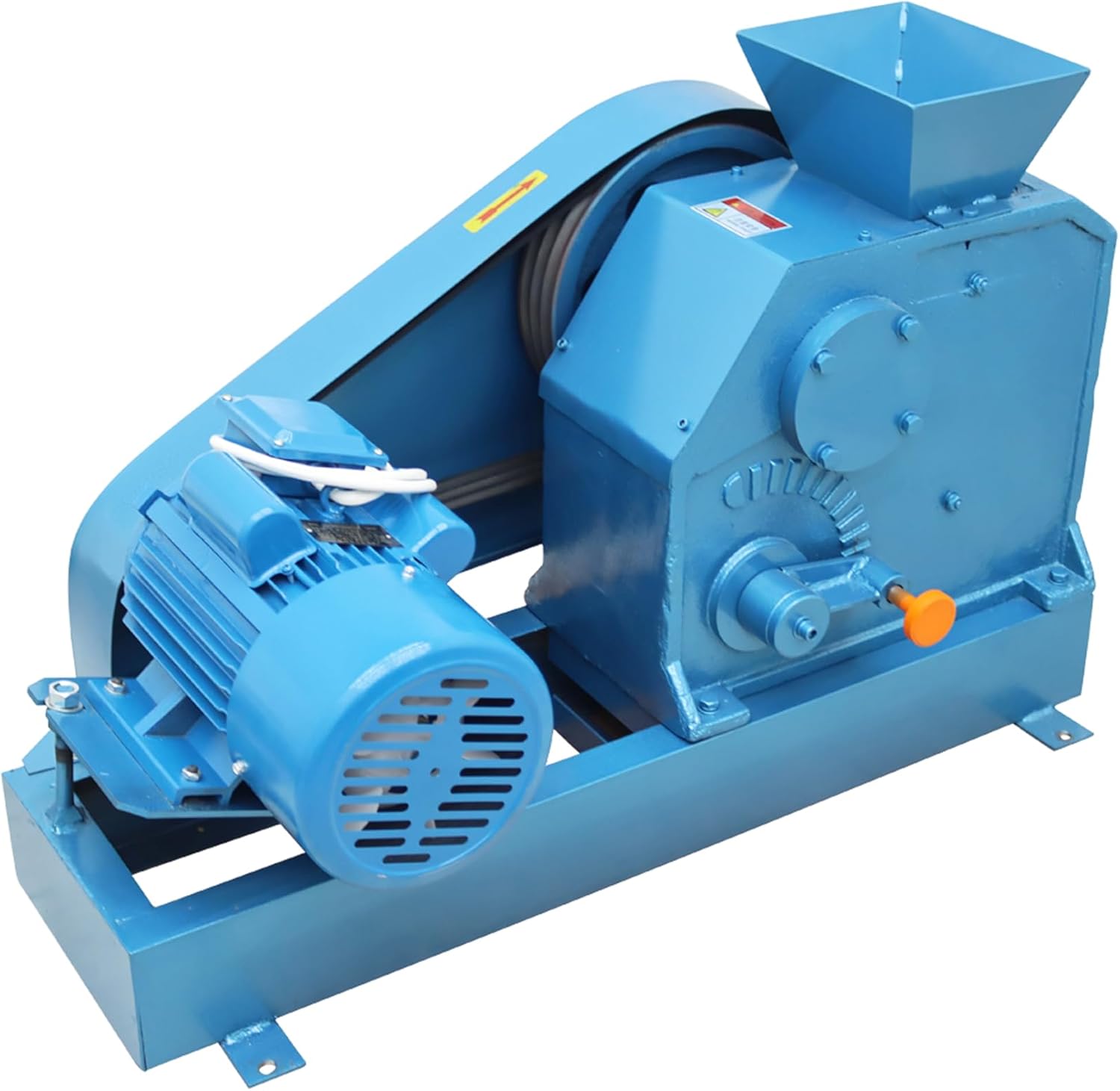

Jaw Crusher Rock Stone Ore Crush Machine Jaw Crushing Machine 500-3000KG/H with Drawer Type Outlet 680RPM 4KW 220V

Installation & Attention1.The installation foundation of the machine body must be firm and flat to prevent the machine body from being broken due to uneven stress.2.Before test running,check whether the fastening screws are tightened and whether the pulley is flexible to be turned by hand.If any abnormality is found,the test running can only be carried out after troubleshooting.3.Before the test run,the no-load test run must be carried out.During the idle test,turn the small handwheel to check whether the regulating mechanism is flexible.It can only be used under the condition that no abnormality exists after no-load test running is conducted for half an hour.4.The hardness of the broken material should not exceed the medium hardness to avoid the damage to the parts and the bad influence on the service life.5.For the convenience of discharging,the installation height of the whole machine can be properly raised during installation.

• [Powerful Motor]:This machine is equipped with 4 KW high power pure copper motor,which the rotating speed up to 680 rpm and crushing capacity of up to 500-3000 kg/h.The machine body is made of cast iron material,good cutting performance,wear-resistant,durable

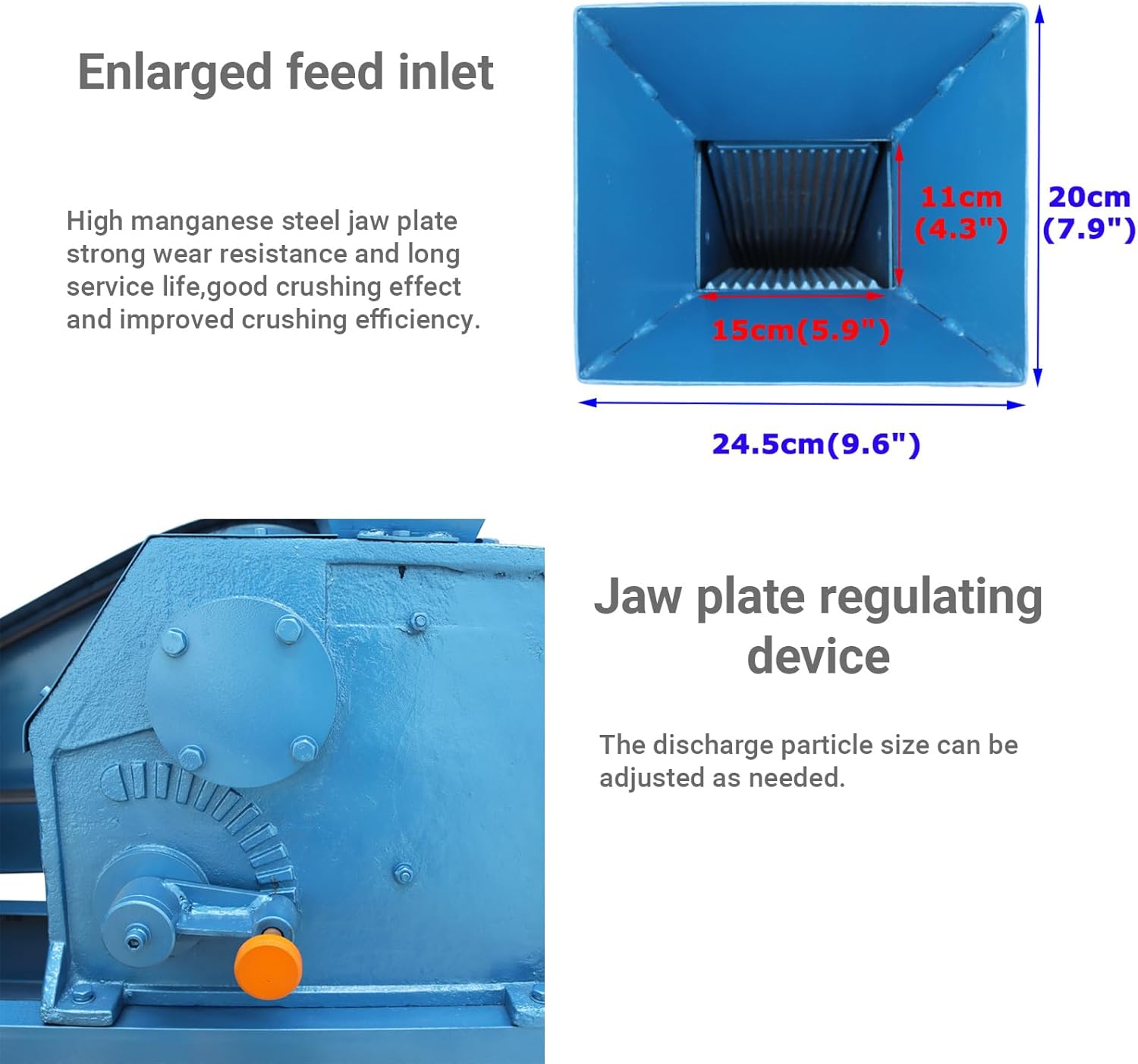

• [High Crushing Ratio]:Jaw crusher has a large crushing ratio,which can crush materials into smaller size,and the size of discharge material is uniform.Enlarged feed inlet,feed more materials,which improves the production efficiency
• [Size Adjustable]:The machine is equipped with jaw plate adjusting device,the granularity of discharged material can be adjusted according to the need to meet the different needs of customers
• [Application]:Jaw crusher is mainly used for crushing various medium-hard rocks or ores,and is a piece of important equipment in the laboratories of metallurgy,geology,building materials,chemical industry and other industries.It can also be used in small-scale ore crushing production
• [Parameter]:Voltage:220 V;Power: 4 KW;Feeding inlet size:4.33*5.91 inch(110*150 mm);Feeding size:≤4.72 inch(120 mm);Output size:0.12-0.98 inch(3-25 mm);Rotating speed:680 rpm;Capacity:500-3000 kg/h Note:This machine has no plug and needs to be connected to the circuit breaker for use by the customer
