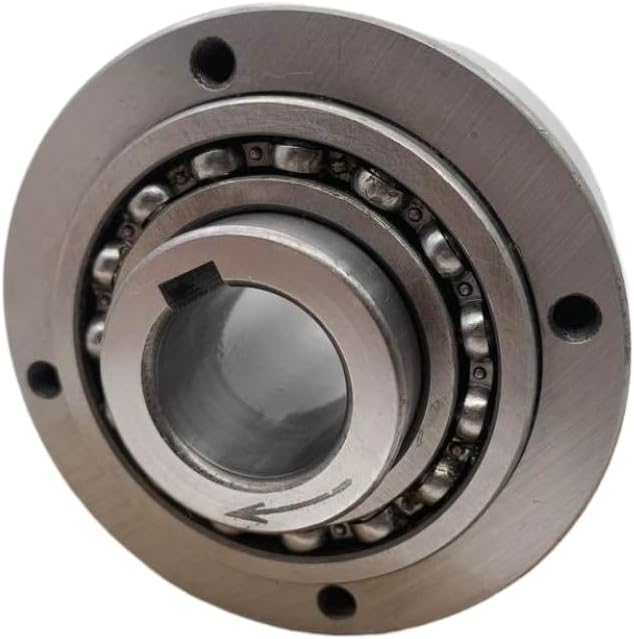

GFR35 One Way Clutches 35x110x74mm Compatible with TLANMP TLANMP

GFR Series One Way Clutches Roller Type (35x110x74mm) are primarily used as overrunning and indexing clutches.Overrunning clutches disengage automatically when the driven member rotates faster than the driving member.Indexing clutches allow the conversion of reciprocating into a discontinuous rotational movement.Types GFR and GFRN are roller type freewheels.They are bearing supported, using two 160.series bearings, and require oil lubrication.These units may be used in designs providing oil lubrication and sealing.The bearings must not be axially stressed.Typically, types GFR and GFRN are used with F series covers designed to transmit torque and provide oil lubrication and sealing.Usually these covers are used in pairs according to combinations shown in technical documentation.The outer race of the GFR model is plain to receive and center any component bored to H7 tolerance.Torque is transmitted by bolts through the cover plate in this case.Types GFR and GFRN are identical except that type GFRN has a keyway on the outside diameter to transmit torque.Two paper seals are delivered with each unit to be placed between the outer race and cover plates.Common applications include reducers, Flender gearbox, SEW gearbox.Overrunning clutch function is suitable for multiple-machine drives or to separate the inertia of masses of a driven machine from the driving machine after it has been switched off.Indexing clutch function turns a shaft step by step, achieving indexed material feed or variable speed output.Backstop clutch function prevents a machine shaft from turning backwards, where the overrunning clutch acts as a brake.Compatibility Disclaimer: This is an aftermarket replacement part.Any brand names or model designations mentioned are used solely for the purpose of demonstrating compatibility.

• Model GFR35 One Way Clutches designed for performance in industrial and mechanical applications
• Dimensions 35mm inner diameter 110mm outer diameter 74mm width compatibility with standard mounting configurations
• One way clutch mechanism allows rotation in a single direction ideal for conveyor systems and power transmission setups
• Constructed with materials to withstand torque and repetitive operational cycles
• Suitable for use in packaging machinery printing and automated production lines
• engineering supports smooth engagement and reduced wear during continuous
• Direct replacement for TLANMP specification clutches simplifying maintenance and part
