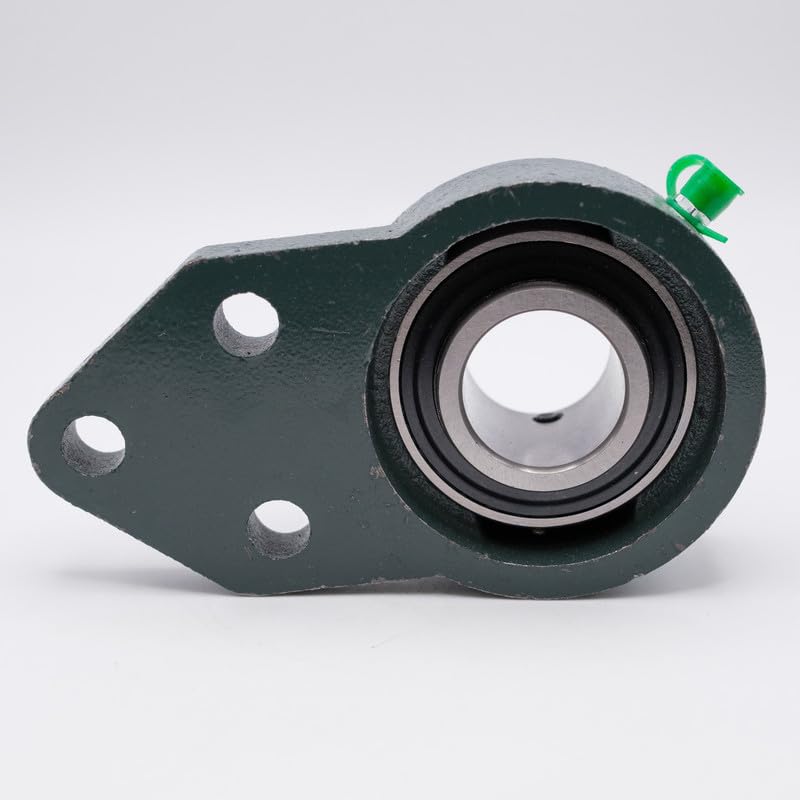

20mm Bore UCFB204 Bracket Flange 3 Bolt Unit

UCFB204 3-Bolt Flange Unit has a combination of a cast iron 3-bolt bracket flange unit and a chrome steel set screw locking insert bearing. This specific 3-Bolt Flange Bearing Unit has a shape of a chevron flange which has a special configuration on conveyors. The insert ball bearing has been made with a wide inner ring and has been equipped with two set screws, located on the extended inner ring, for the attachment of a shaft. Our Mounted Block Units are pre-lubricated with Grease, allowing them to be ready for immediate use upon arrival.UCFB204 Mounted Blocks are used in Construction Equipment, Pumps, Manufacturing Equipment, Sporting , Conveyor and Fan Assemblies, HVAC Systems, Feed Mills, Agricultural Equipment and other Industrial Equipment.

• UCFB204 Mounted Blocks are used in Construction Equipment, Pumps, Manufacturing Equipment, Sporting, Conveyor and Fan Assemblies, HVAC Systems, Feed Mills, Agricultural Equipment and other Industrial Equipment.
• UCFB204 The bearing can be easily replaced with various interchangeable models, including FB-SC-20M, UCFB204-20, FB-204, UCFB204, UCFB204, UCFB204, FB3-U2M20N, UCFH204D1.
• UCFB204 These bearings have a 20mm inner diameter, Length 62mm, Height 110mm, Bolt Hole to Bolt Hole 32mm, Base to Center 42mm
• This bearing, made from tough and durable Chrome Steel SAE-52100, is built to last.It comes pre-lubricated with grease.
